برقگیر AC سری VPM750-100 کلاس دو

SN

Name

Specification, type code

1

Design code

VP

2

Product Series

M

3

Max. continuous operating voltage Uc

750: AC 750 V; 1000: AC 1000 V

4

Max. discharge current Imax

40: 40 kA; 50: 50 kA; 100: 100 kA

5

Protection mode

3P: 3P; 4P: 4P; 3P+1P: 3P+1P; 3N+NPG: 3N+NPG

Model

VPM750-100/3N+NPG

SPD according to EN/IEC 61643-11

Type 2

Protection mode

3+1 mode

Nominal operating voltage Un

AC 690 V 50/60 Hz

Max. continuous operating voltage Uc

AC 750 V 50/60 Hz

Nominal discharge current In(8/20 μs)

50 kA

Max. discharge current Imax(8/20 μs)

100 kA

Voltage protection level Up

≤ 5.0 kV

Leakage current

≤ 20 μA

Response time

≤ 100 ns

Max. backup fuse

160 A gL/gG

Cross-sectional area

6 ~ 35 mm²

Stripping length terminals

12.5 mm

Tightening torque

3 N·m

Normal/Fault Indication

Green/Red

Remote signaling mode

RSC: Remote Signal contact, NC-COM-NO contact

Performances of remote signal contact

AC: 250 V/0.5 A; DC: 250 V/0.1 A, 125 V/0.2 A, 75 V/0.5 A

Remote cross-sectional area

Max. 1.5 mm²

Installation method

35 mm DIN rail

Housing material

UL94-V0

Protection class

IP20

Outline dimensions (without terminal)

90 mm × 144 mm × 65.5 mm (tolerance ± 1 mm)

Module pluggable

/

Internal protection device

The lightning protection unit has a built-in thermal trip device

Model

Un

Uc

Up

In

Imax

Protection mode

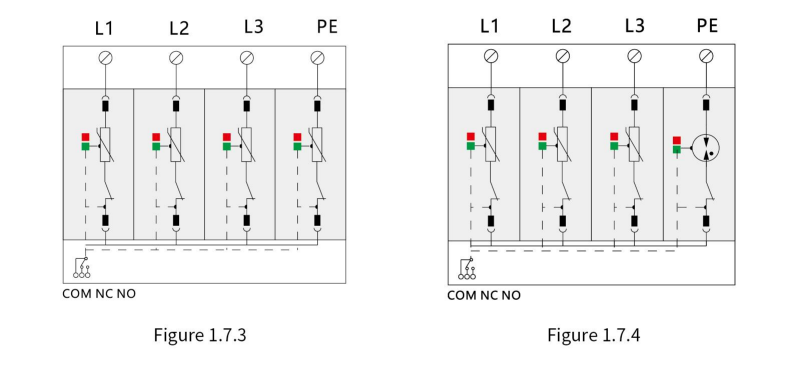

Operating Principle

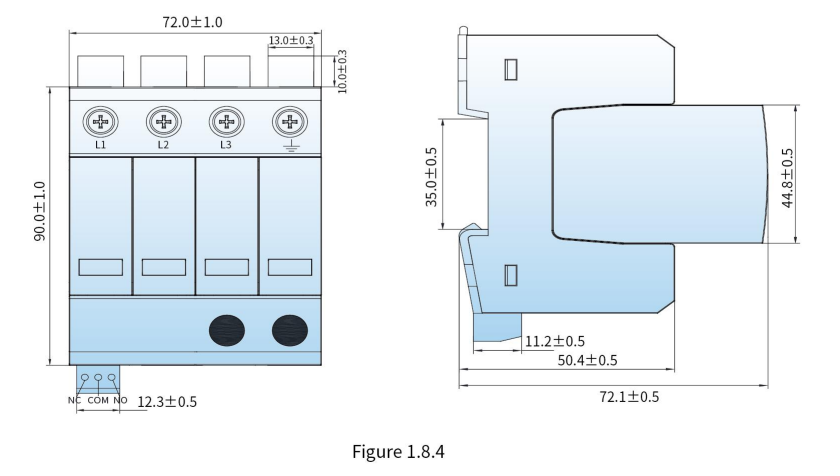

Size

VPM750-100/3N+NPG

AC 690 V

AC 750 V

5.0 kV

50 kA

100 kA

L-PE

Figure 1.7.4

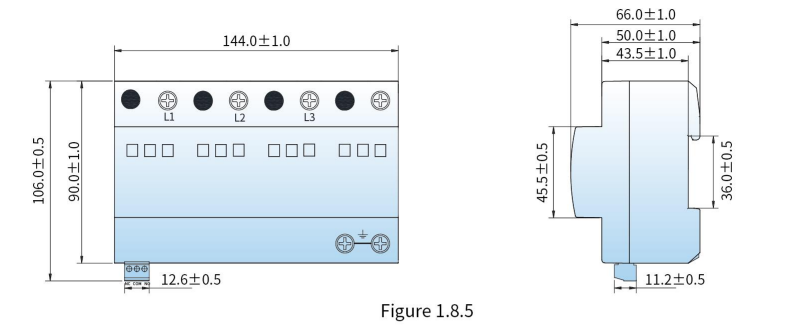

Figure 1.8.5
