برقگیر AC کلاس 2 سری VPM385-40

SN

Name

Specification, type code

1

Design code

VP

2

Product Series

M

3

Max. continuous operating voltage Uc

275: AC 275 V; 320: AC 320 V; 385: AC 385 V

4

Max. discharge current Imax

40: 40 kA; 80: 80 kA; 100: 100 kA

5

Protection mode

2P: 2P; 3P: 3P; 1N+NPG: 1N+NPG; 3N+NPG: 3N+NPG; 4P: 4P

Model

VPM385-40/2P

SPD according to EN/IEC 61643-11

Type 2

Protection mode

2+0 mode

Nominal operating voltage Un

AC 230/400 V 50/60 Hz

Max. continuous operating voltage Uc

AC 385 V 50/60 Hz

Nominal discharge current In (8/20 μs)

20 kA

Max. discharge current Imax (8/20 μs)

40 kA

Voltage protection level Up

L-N ≤ 1.8 kV, N-PE ≤ 1.8 kV

Leakage current

≤ 20 μA

Response time

L-N ≤ 25 ns, N-PE ≤ 100 ns

Max. backup fuse

125 A gL/gG

Cross-sectional area

6 ~ 35 mm²

Stripping length terminals

12.5 mm

Tightening torque

3 N·m

Normal/Fault Indication

Green/Red

Remote signaling mode

RSC: Remote Signal contact, NC-COM-NO contact

Performances of remote signal contact

AC: 250 V/0.5 A; DC: 250 V/0.1 A, 125 V/0.2 A, 75 V/0.5 A

Remote cross-sectional area

Max. 1.5 mm²

Installation method

35 mm DIN rail

Housing material

UL94-V0

Protection class

IP20

Outline dimensions (without terminal)

90.0 mm × 36.0 mm × 72.1 mm (tolerance ± 1 mm)

Module pluggable

Pluggable

Internal protection device

The lightning protection unit has a built-in thermal trip device

Environmental protection characteristics

RoHS

Short-circuit withstand capability

25 kArms

Model

Un

Uc

Up

In

Imax

Protection mode

Operating Principle

Size

VPM385-40/2P

AC 230 V

AC 385 V

1.8 kV

20 kA

40 kA

L-PE & N-PE

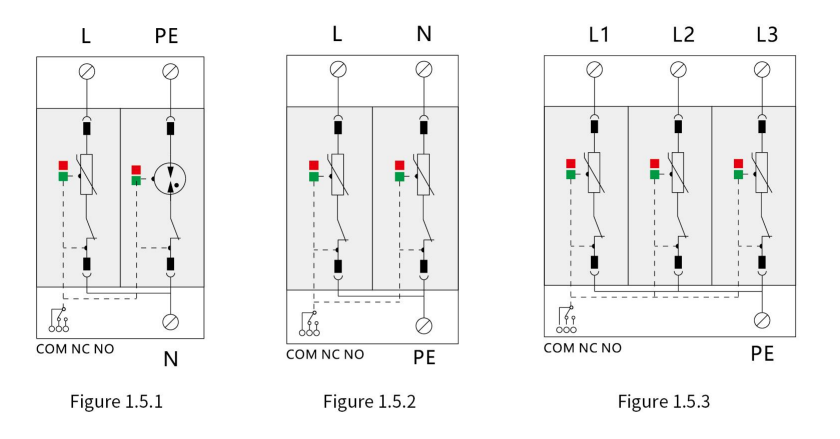

Figure 1.5.2

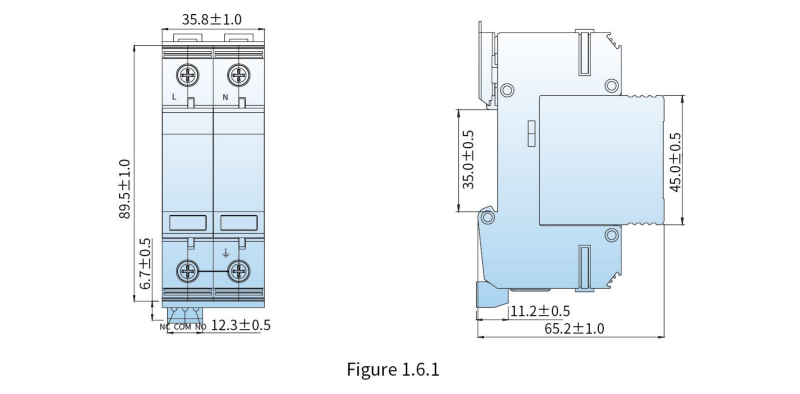

Figure 1.6.1

VPM385-40/3P

AC 230 V

AC 385 V

1.8 kV

20 kA

40 kA

L-PE

Figure 1.5.3

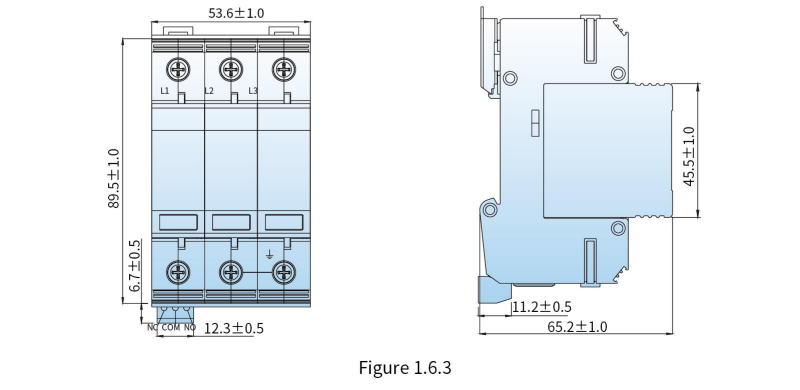

Figure 1.6.3

VPM385-40/4P

AC 230 V

AC 385 V

1.8 kV

20 kA

40 kA

L-N & N-PE

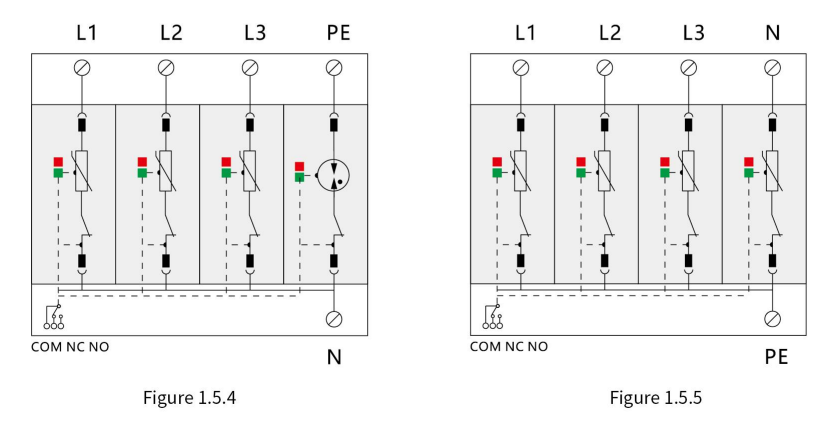

Figure 1.5.5

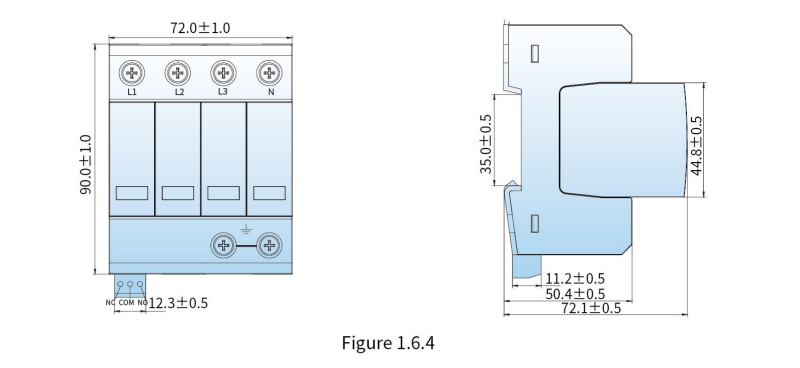

Figure 1.6.4

VPM385-40/3N+NPG

AC 230 V

AC 385 V

1.8 kV

20 kA

40 kA

L-N & N-PE

Figure 1.5.4

Figure 1.6.4
