برقگیر AC کلاس 2+1 سری VPM1000-50 (T1+T2)

Model

VPM1000-50/3N+NPG(T1+T2)

SPD according to EN/IEC 61643-11

Type 1+2

Network

/

Protection mode

3+1 mode

Nominal operating voltage Un

AC 800 V 50/60 Hz

Max. continuous operating voltage Uc

L-N: AC 1000 V; N-PE: AC 255 V

Impulse current Iimp (10/350 μs)

12.5 kA

Nominal discharge current In (8/20 μs)

25 kA

Max. discharge current Imax (8/20 μs)

50 kA

Voltage protection level Up

L-N ≤ 5.0 kV; N-PE ≤ 2.0 kV; L-PE ≤ 7.0 kV

Leakage current

≤ 20 μA

Response time

L-N ≤ 25 ns; N-PE ≤ 100 ns

Max. backup fuse

80 A gL/gG

Cross-sectional area

6 ~ 35 mm²

Stripping length terminals

12.5 mm

Tightening torque

3 N·m

Normal/Fault Indication

Green/Red

Remote signaling mode

RSC: Remote Signal contact, NC-COM-NO contact

Performances of remote signal contact

AC: 250 V/0.5 A; DC: 250 V/0.1 A, 125 V/0.2 A, 75 V/0.5 A

Remote cross-sectional area

Max. 1.5 mm²

Installation method

35 mm DIN rail

Housing material

PA66 UL94-V0

Protection class

IP20

Operation temperature

-40 °C ~ +70 °C

Relative humidity

≤ 95% (25 °C)

Operating altitude

≤ 3000 m

Outline dimensions (without terminal)

92 mm × 90 mm × 85.4 mm (tolerance ± 1 mm)

Module pluggable

Pluggable

Internal protective devices

Low-temperature tripping device

Short-circuit withstand capability

/

Model

Un

Uc

Up

In

Imax

Protection mode

Operating Principle

Size

VPM1000-50/3N+NPG(T1+T2)

AC 800 V

AC 1000 V

7.0 kV

25 kA

50 kA

L-N & N-PE

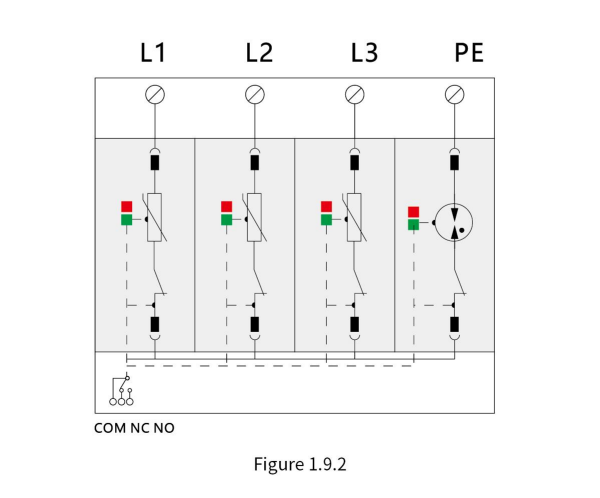

Figure 1.9.2

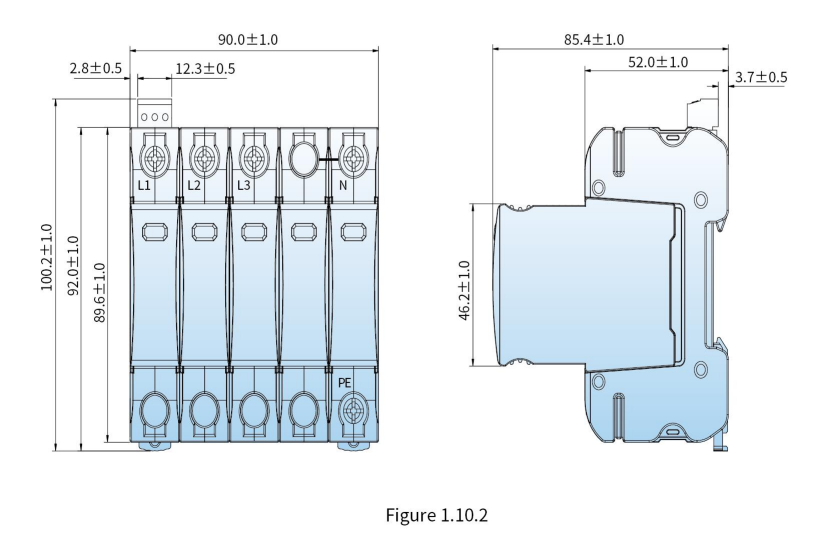

Figure 1.10.2
