برقگیر AC سری VPM1000-40 کلاس دو

SN

Name

Specification, type code

1

Design code

VP

2

Product Series

M

3

Max. continuous operating voltage Uc

750: AC 750 V; 1000: AC 1000 V

4

Max. discharge current Imax

40: 40 kA; 50: 50 kA; 100: 100 kA

5

Protection mode

3P: 3P; 4P: 4P; 3P+1P: 3P+1P; 3N+NPG: 3N+NPG

Model

VPM1000-40/3P

SPD according to EN/IEC 61643-11

Type 2

Protection mode

3+0 mode

Nominal operating voltage Un

AC 800 V 50/60 Hz

Max. continuous operating voltage Uc

AC 1000 V 50/60 Hz

Nominal discharge current In(8/20 μs)

20 kA

Max. discharge current Imax(8/20 μs)

40 kA

Voltage protection level Up

≤ 4.0 kV

Leakage current

≤ 20 μA

Response time

≤ 25 ns

Max. backup fuse

50 A-125 A gL/gG

Cross-sectional area

6 ~ 35 mm²

Stripping length terminals

12.5 mm

Tightening torque

3 N·m

Normal/Fault Indication

Green/Red

Remote signaling mode

RSC: Remote Signal contact, NC-COM-NO contact

Performances of remote signal contact

AC: 250 V/0.5 A; DC: 250 V/0.1 A, 125 V/0.2 A, 75 V/0.5 A

Remote cross-sectional area

Max. 1.5 mm²

Installation method

35 mm DIN rail

Housing material

UL94-V0

Protection class

IP20

Outline dimensions (without terminal)

90 mm × 81 mm × 65.5 mm (tolerance ± 1 mm)

Module pluggable

Pluggable

Internal protection device

The lightning protection unit has a built-in thermal trip device

Model

Un

Uc

Up

In

Imax

Protection mode

Operating Principle

Size

VPM1000-40/3P

AC 800 V

AC 1000 V

4.0 kV

20 kA

40 kA

L-PE

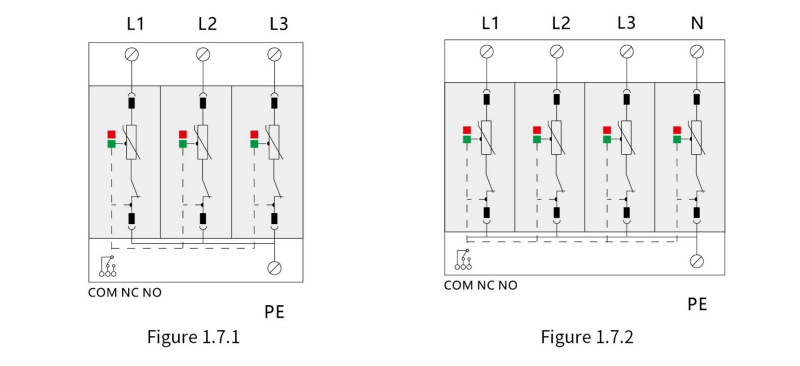

Figure 1.7.1

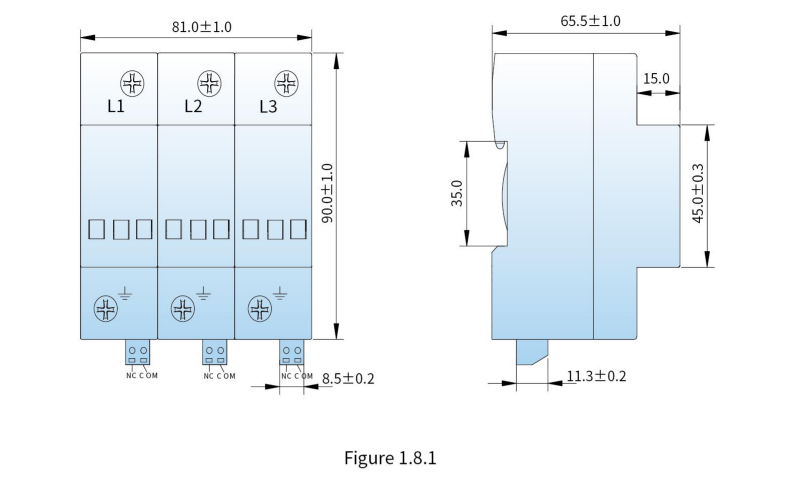

Figure 1.8.1

VPM1000-40/4P

AC 800 V

AC 1000 V

4.0 kV

20 kA

40 kA

L-PE

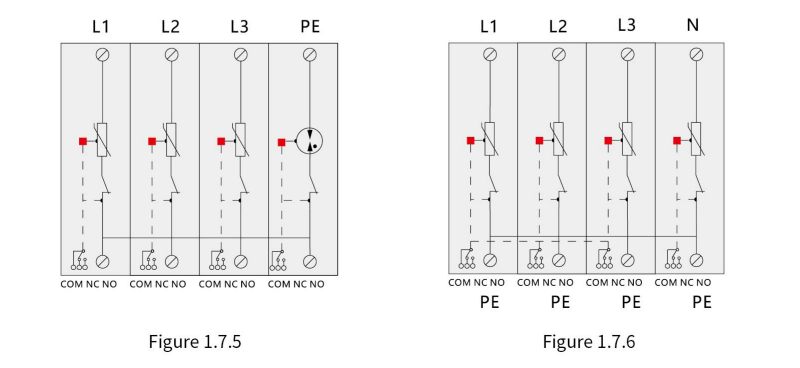

Figure 1.7.6

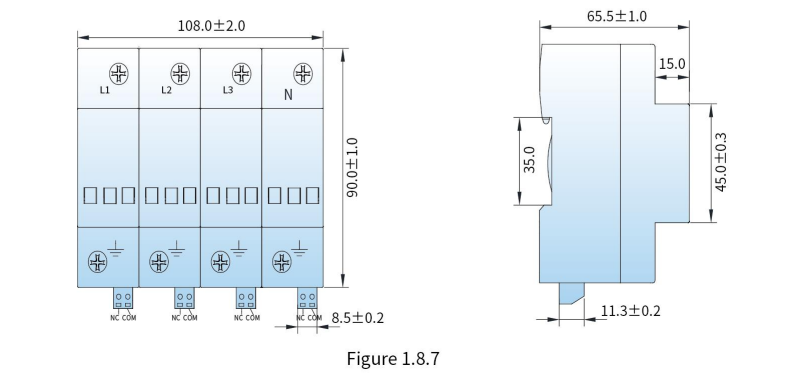

Figure 1.8.7

VPM1000-40/3N+NPG

AC 800 V

AC 1000 V

4.5 kV

20 kA

40 kA

L-PE

Figure 1.7.5

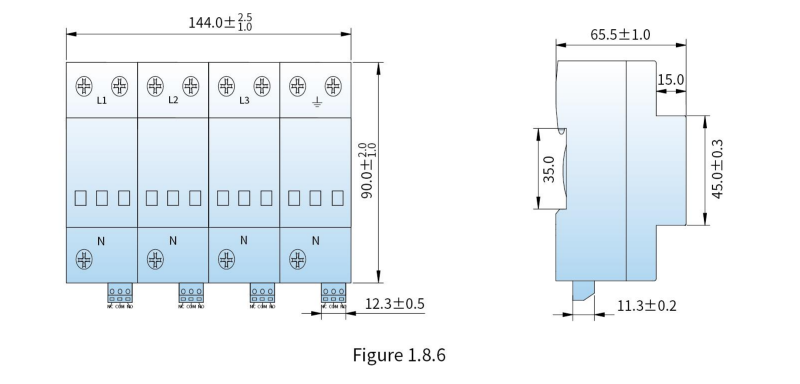

Figure1.8.6
