برقگیر DC کلاس 2 سری VPD600-40

SN

Name

Specification, type code

1

Design code

VP

2

Product Series

D

3

Nominal operating voltage Un

600: DC 600 V

4

Max. discharge current Imax

40: 40 kA;

5

Protection mode

2P: 2P; 3P: 3P

Model

VPD600-40/2P

SPD according to EN/IEC 61643-11

Type 2

Protection mode

V+-PE & V--PE

Nominal operating voltage Un

DC 600 V

Max. continuous operating voltage Uc

DC 750 V

Nominal discharge current In (8/20 μs)

20 kA

Max. discharge current Imax (8/20 μs)

40 kA

Voltage protection level Up

≤ 2.5 kV

Response time

≤ 25 ns

Max. backup fuse

125 A gL/gG

Cross-sectional area

6 ~ 25 mm²

Tightening torque

3 N·m

Normal/Fault Indication

Green/Red

Remote signaling mode

RSC: Remote Signal Contact, NC-COM-NO contact

Performances of remote signal contact

AC: 250 V/0.5 A; DC: 250 V/0.1 A, 125 V/0.2 A, 75 V/0.5 A

Remote cross-sectional area

Max. 1.5 mm²

Installation method

35 mm DIN rail

Housing material

UL94-V0

Outline dimensions (without terminal)

89.5 mm × 35.8 mm × 65.2 mm (tolerance ± 1 mm)

Environmental protection characteristics

RoHS

Model

Un

Uc

Up

In

Imax

Protection mode

Operating Principle

Size

VPD600-40/2P

DC 600 V

DC 750 V

2.5 kV

20 kA

40 kA

V+-PE & V--PE

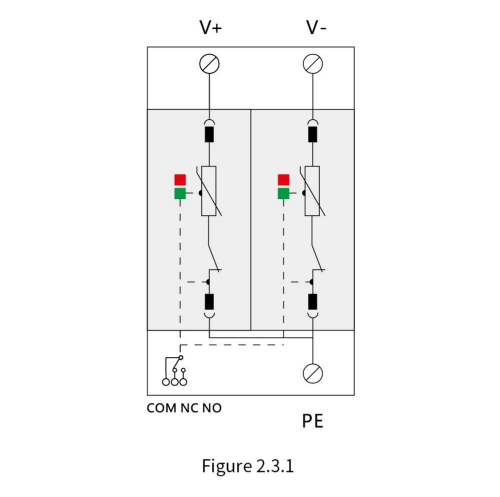

Figure 2.3.1

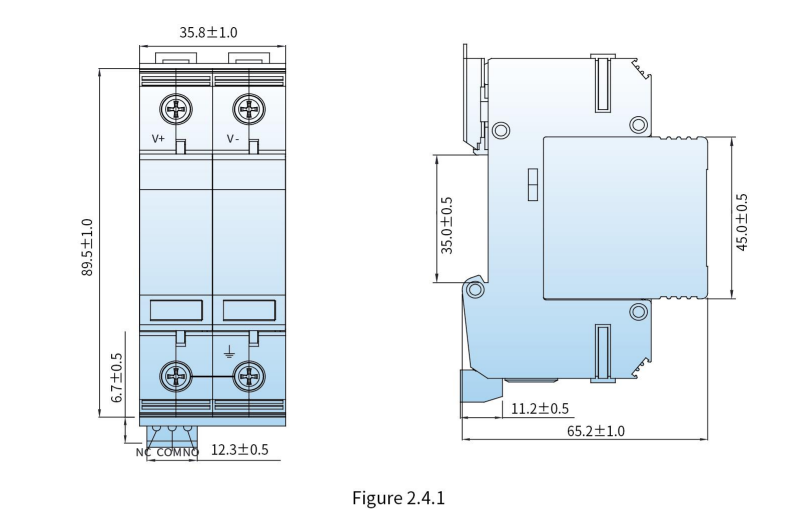

Figure 2.4.1

VPD600-40/3P

DC 600 V

DC 830 V

2.8 kV

20 kA

40 kA

V+ & V--PE

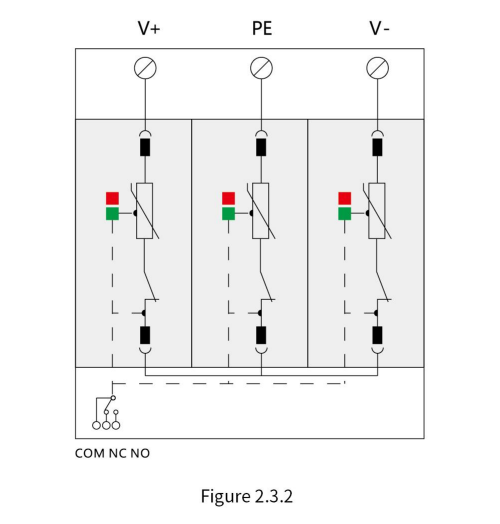

Figure 2.3.2

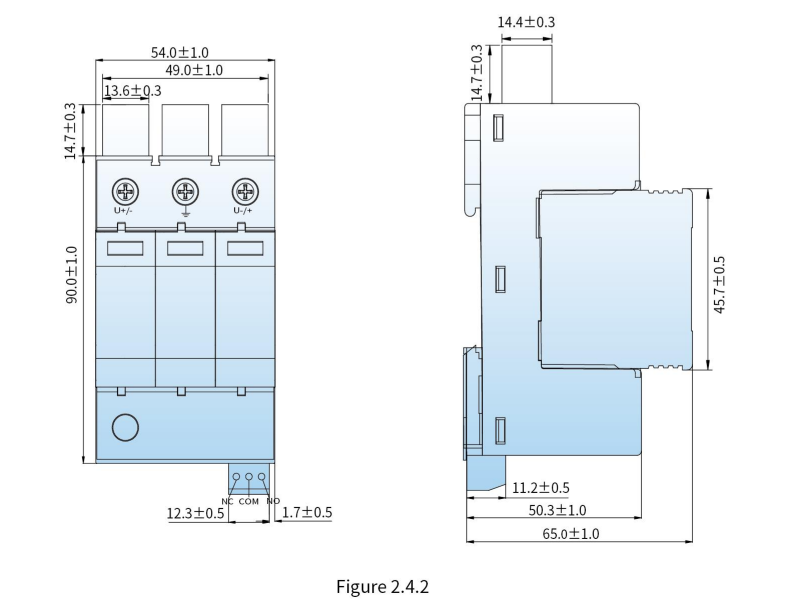

Figure 2.4.2
