برقگیر PV کلاس 2 سری VPD2000-40

SN

Name

Specification, type code

1

Design code

VP

2

Product Series

D

3

Nominal operating voltage Un

750: DC 750 V; 1000: DC 1000 V; 1500: DC 1500 V; 2000: DC 2000 V

4

Max. discharge current Imax

40: 40 kA;

5

Protection mode

2P: 2P; 3P: 3P

Model

VPD2000-40/3P

SPD according to EN/IEC 61643-11

Type 2

Protection mode

V+-V- & V+/V--PE

Nominal operating voltage Un

DC 2000 V

Max. continuous operating voltage Uc

DC 2450 V

Impulse current Iimp (10/350 μs)

5.0 kA

Nominal discharge current In (8/20 μs)

20 kA

Max. discharge current Imax (8/20 μs)

40 kA

Voltage protection level Up

≤ 8.5 kV

Rated short-circuit current Iscpv

1000 A

Response time

V+-V- ≤ 25 ns, V+/V—PE ≤ 100 ns

Max. backup fuse

125 A gL/gG

Cross-sectional area

1.5 ~ 25 mm²

Tightening torque

Wiring terminal: 2.5 N·m, remote signal terminal: 0.25 N·m

Normal/Fault Indication

Green/Red

Remote signaling mode

Alarm dry contact (RSC: Remote Signal Contact), 12-11-14 contacts

Performances of remote signal contact

AC: 250 V/0.5 A,125 V/1 A; DC: 30 V/0.1 A

Remote cross-sectional area

Max. 1.5 mm²

Installation method

35 mm DIN rail

Housing material

UL94-V0

Protection class

IP20

Outline dimensions (without terminal)

100.0 mm × 108.0 mm × 85.0 mm (tolerance ± 1 mm)

Operating temperature

-40 °C ~ +85 °C

Relative humidity

≤ 95% (25 °C)

Operating altitude

-500m ~ 4000 m

Product certification

TUV

Environmental protection characteristics

RoHS

Parameter

Model

Un

Uc

Up

In

Imax

Protection mode

Operating Principle

Size

VPD2000-40/3P

DC 2000 V

DC 2450 V

8.5 kV

20 kA

40 kA

V+-V- & V+/V--PE

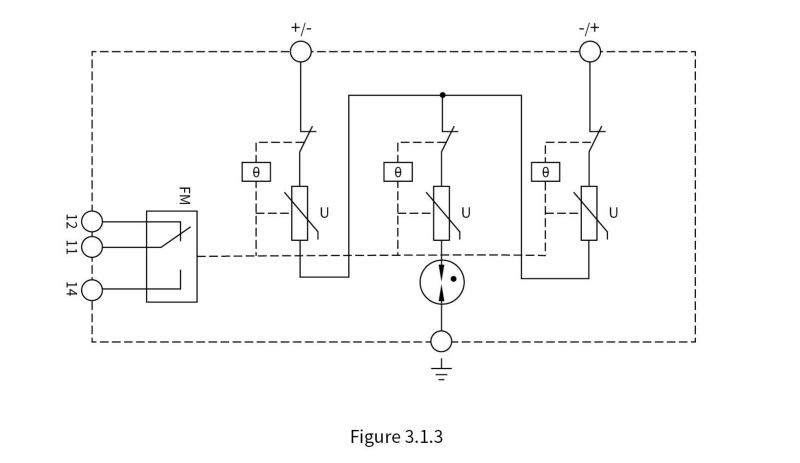

Figure3.1.3

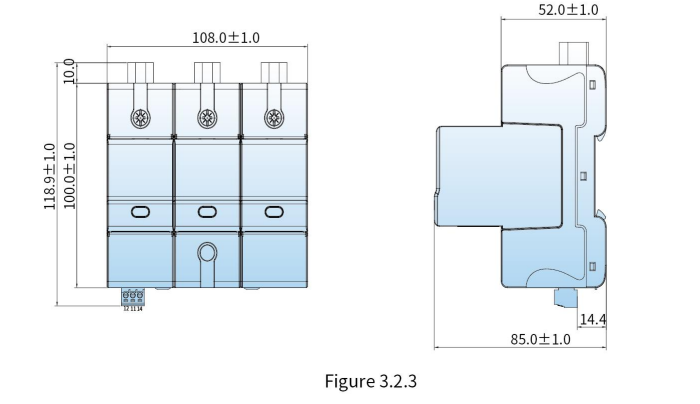

Figure 3.2.3
