برقگیر PV کلاس 2+1 سری VPD1500-40 (T1+T2)

SN

Name

Specification, type code

1

VP

Design code

2

D

Product Series

3

1000: DC 1000 V; 1500: DC 1500 V

Nominal operating voltage Un

4

40: 40 kA;

Max. Discharge Current Imax

5

3P: 3P

Protection mode

6

T1+T2

Test type

Model

VPD1500-40/3P (T1+T2)

SPD according to EN/IEC 61643-11

Type 1+2

Protection mode

V+ & V--/PE

Nominal operating voltage Un

DC 1250 V

Max. continuous operating voltage Uc

DC 1500 V

Impulse current Iimp (10/350 μs)

6.25 kA

Nominal discharge current In (8/20 μs)

20 kA

Max. discharge current Imax (8/20 μs)

40 kA

Voltage protection level Up

≤ 5.0 kV

Rated short-circuit current Iscpv

1000 A

Leakage current

≤ 20 μA

Response time

≤ 25 ns

Max. backup fuse

125 A gL/gG

Cross-sectional area

6 ~ 25 mm²

Tightening torque

3 N·m

Normal/Fault Indication

Green/Red

Remote signaling mode

RSC: Remote Signal contact, NC-COM-NO contact

Performances of remote signal contact

AC: 250 V/0.5 A; DC: 250 V/0.1 A, 125 V/0.2 A, 75 V/0.5 A

Remote cross-sectional area

Max. 1.5 mm²

Installation method

35 mm DIN rail

Housing material

UL94-V0

Protection class

IP20

Operating temperature

-40 °C ~ +80 °C

Relative humidity

≤ 95% (25 °C)

Operating altitude

≤ 4000 m

Outline dimensions (without terminal)

90 mm × 50 mm × 80.5 mm (tolerance ± 1 mm)

Model

Un

Uc

Up

In

Imax

Protection mode

Operating Principle

Size

VPD1500-40/3P(T1+T2)

DC 1250 V

DC 1500 V

5.0 kV

20 kA

40 kA

V+ & V--/PE

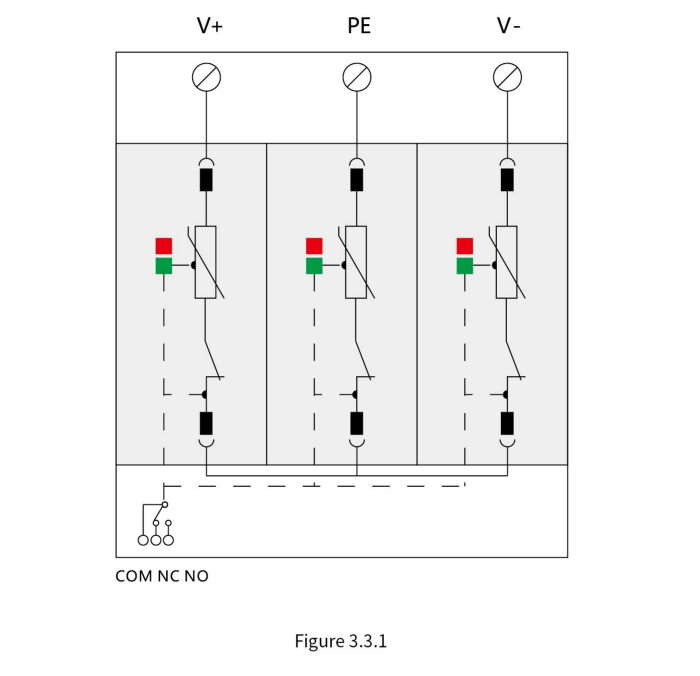

Figure 3.3.1

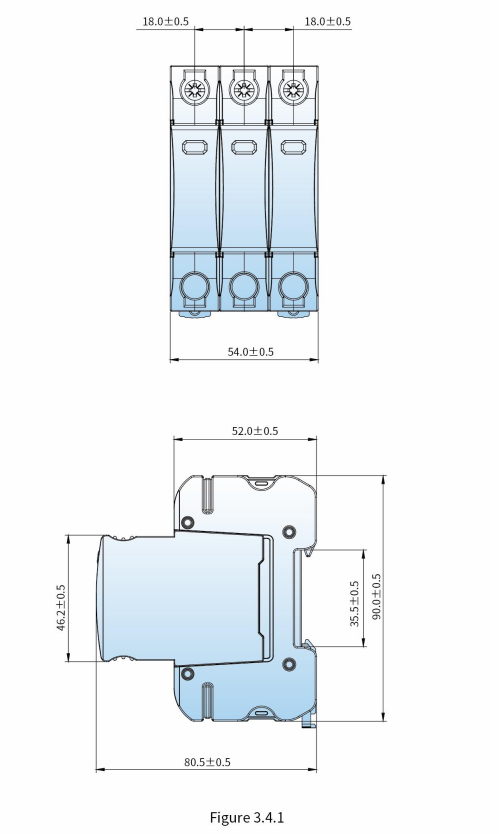

Figure 3.4.1
