برقگیر PV کلاس 2 سری VPD1000-40

SN

Name

Specification, type code

1

Design code

VP

2

Product Series

D

3

Nominal operating voltage Un

750: DC 750 V; 1000: DC 1000 V; 1500: DC 1500 V; 2000: DC 2000 V

4

Max. discharge current Imax

40: 40 kA;

5

Protection mode

2P: 2P; 3P: 3P

Model

VPD1000-40/3P

SPD according to EN/IEC 61643-11

Type 2

Protection mode

V+-V- & V+-PE & V--PE

Nominal operating voltage Un

DC 1000 V

Max. continuous operating voltage Uc

DC 1300 V

Impulse current Iimp (10/350 μs)

/

Nominal discharge current In (8/20 μs)

20 kA

Max. discharge current Imax (8/20 μs)

40 kA

Voltage protection level Up

≤ 4.0 kV

Rated short-circuit current Iscpv

1000 A

Response time

≤ 25 ns

Max. backup fuse

125 A gL/gG

Cross-sectional area

6 ~ 25 mm²

Tightening torque

3 N·m

Normal/Fault Indication

Green/Red

Remote signaling mode

RSC: Remote Signal Contact, NC-COM-NO contact

Performances of remote signal contact

AC: 250 V/0.5 A; DC: 250 V/0.1 A, 125 V/0.2 A, 75 V/0.5 A

Remote cross-sectional area

Max. 1.5 mm²

Installation method

35 mm DIN rail

Housing material

UL94-V0

Protection class

IP20

Outline dimensions (without terminal)

104.7 mm × 54 mm × 65 mm (tolerance ± 1 mm)

Operating temperature

-40 °C ~ +70 °C

Relative humidity

≤ 95% (25 °C)

Operating altitude

≤ 3000 m

Product certification

TUV

Environmental protection characteristics

RoHS

Parameter

Model

Un

Uc

Up

In

Imax

Protection mode

Operating Principle

Size

VPD1000-40/3P

DC 1000 V

DC 1300 V

4.0 kV

20 kA

40 kA

V+-V- & V+-PE & V--PE

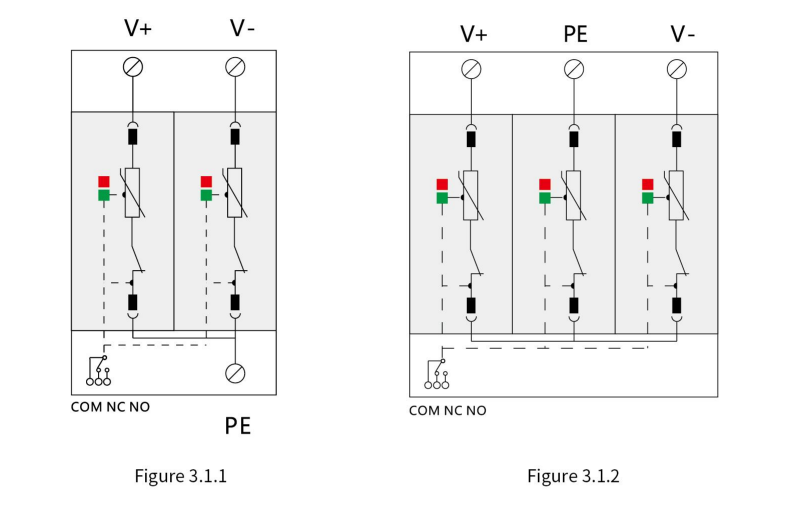

Figure3.1.2

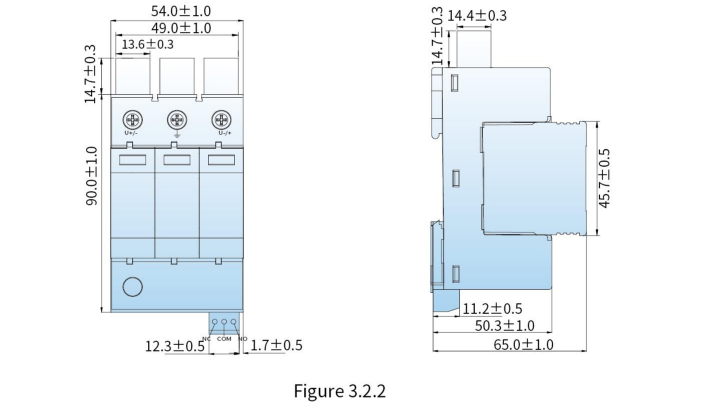

Figure 3.2.2
