برقگیر سیگنال کلاس 3 سری VP-05

Model

VP-05K2

SPD according to EN/IEC 61643-11

Type 3

Protection mode

Common mode, differential mode

Protection line

L-L & L-PE

Nominal operating voltage Un

DC 5 V

Max. continuous operating voltage Uc

DC 8 V

Impact limit voltage (1 kV/μs)

< 20 V

Impulse current Iimp (10/350 μs)

0.5 kA

Nominal discharge current In (8/20 μs)

5 kA

Max. discharge current Imax (8/20 μs)

10 kA

Leakage current

700 mA

Normal/Fault Indication

Green/Red

Installation method

35 mm DIN rail

Housing material

PBT UL94-V0

Protection class

IP20

Outline dimensions (without terminal)

90 mm × 12.5 mm × 74.5 mm (tolerance ± 1 mm)

Insertion loss (at maximum load)

< 1 dB

Cut-off frequency

3 Mbps

Max. series impedance

1 Ω

Wiring method

Crimping frame connection

Grounding method

Compatible with rail grounding or dedicated port grounding

Model

Un

Uc

Up

In

Imax

In-total

Protection mode

Operating Principle

Size

VP-05K2

DC 5 V

DC 8 V

L-L ≤ 30 V

L-PE ≤ 75 V

5 kA

10 kA

20 kA

Common mode, differential mode

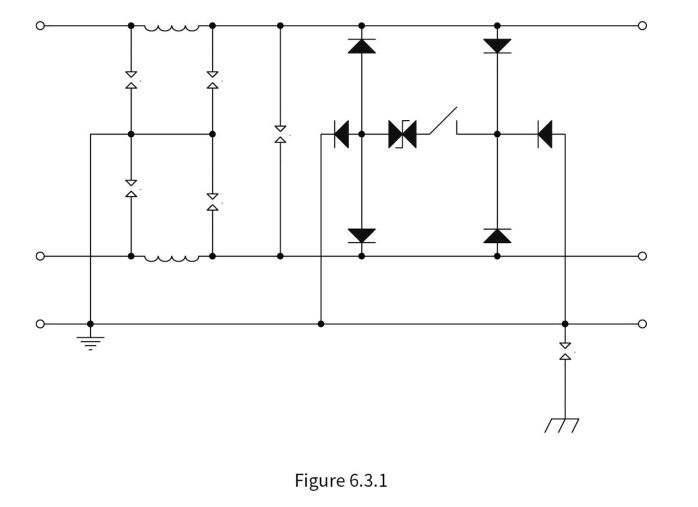

Figure 6.3.1

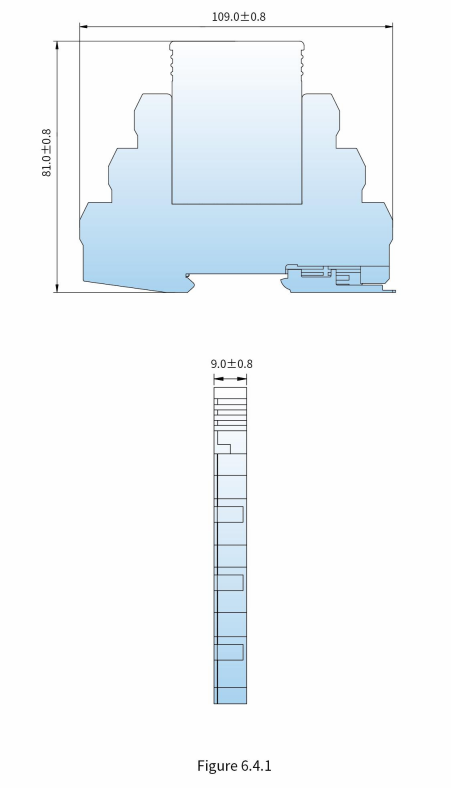

Figure 6.4.1

VP-05K4

DC 5 V

DC 8 V

L-L ≤ 30V

L-PE ≤ 75V

5 kA

10 kA

40 kA

Common mode, differential mode

Figure 6.3.1

Figure 6.4.1
